● 8pcs,210Ah Maintenance-free battery
● American Curtis electric controller
● EPS system
● Radial tires
<
>
● 8pcs,210Ah Maintenance-free battery
● American Curtis electric controller
● EPS system
● Radial tires
Product description
● Aluminum frame and glass door as the cabin.
● Four wheel hydraulic drum brake and parking brake.
● Equipped with EPS electronic power steering system, the steering is more convenient;
● Curtis controllers are imported from US manufacturer directly!
Technic Parameters
Technic Parameters |
||||
Item Name |
Unit |
Specification |
||
Rated Occupant |
Person |
2 |
||
Dimension |
Length |
mm |
4500(±2%) |
|
Width |
mm |
1400(±2%) |
||
Height |
mm |
2100(±1%) |
||
Wheelbase |
Front track |
mm |
1200(±1%) |
|
Rear track |
mm |
1200(±1%) |
||
Wheel tread |
mm |
2130±1%) |
||
Car body |
Box length |
mm |
1390(±2%) |
|
Box width |
mm |
860(±2%) |
||
Box height |
mm |
1085(±2%) |
||
Volume |
L |
1200 |
||
Quality parameter |
Curb weight |
kg |
1300(±2%) |
|
Rated load |
kg |
1250 |
||
Travel performance |
Max.speed |
km/h |
≤30 |
|
Range |
km |
≥80 |
||
Power consumption |
kWh |
≤15 |
||
Brake Performance |
Braking method |
/ |
Hydraulic brake |
|
Brake type |
/ |
Hub brake |
||
Braking distance (unloaded) |
m |
≤4 |
||

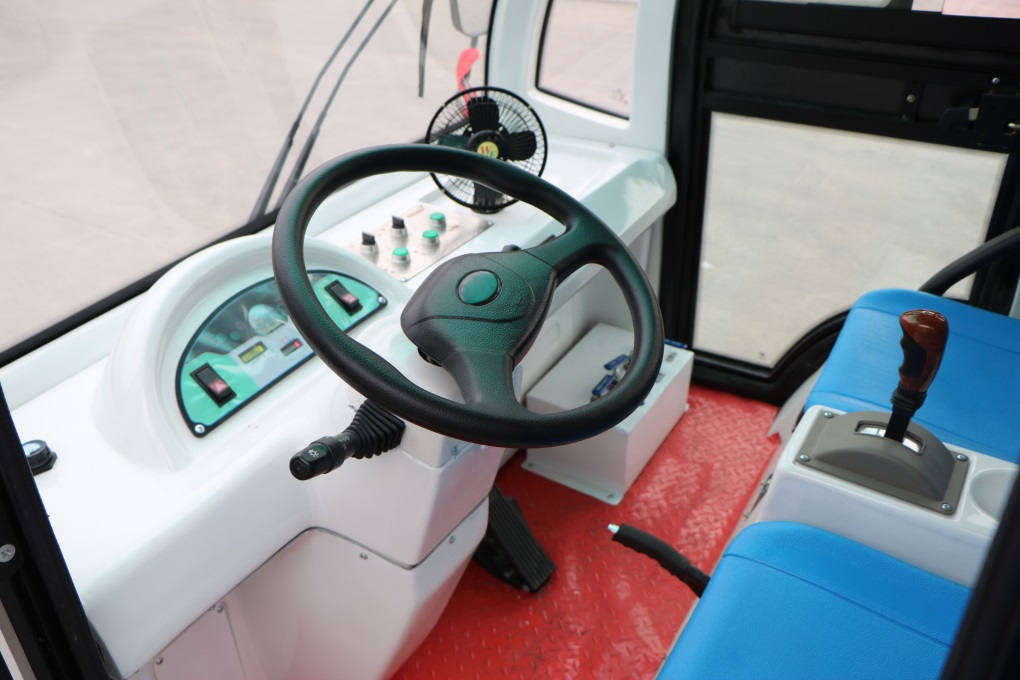

Steering performance
High temperature washing system |
Steering method |
/ |
Steering wheel |
|
Steering assist |
/ |
EPS |
||
Minimum turning radius |
m |
≤5 |
||

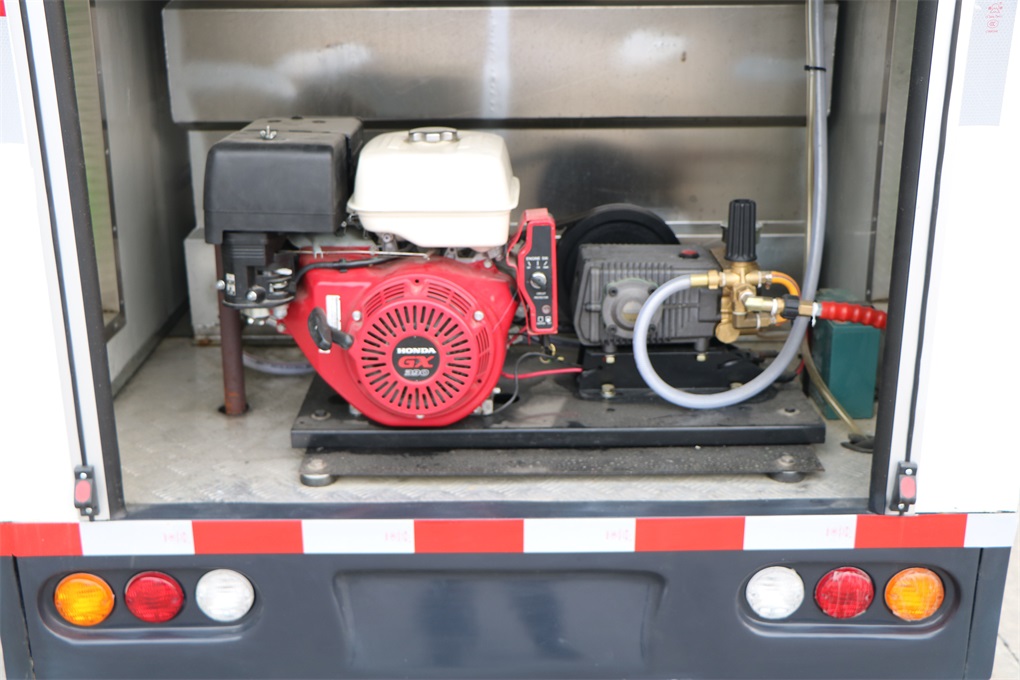

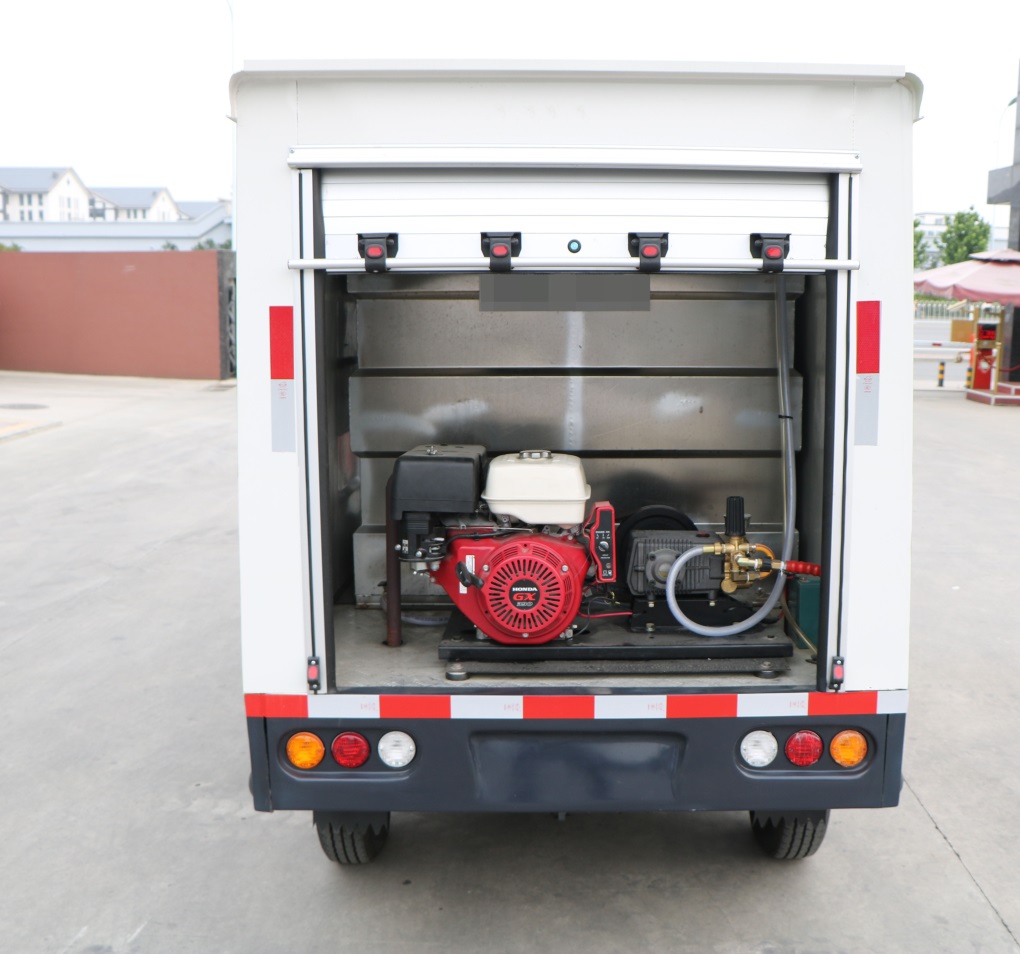

Engine |
Brand |
Karcher |
||
Engine power |
HP |
10 |
||
KW |
7.5 |
|||
Fuel tank capacity |
L |
32 |
||
Oil model |
# |
0# / -10# Diesel |
||
Engine speed |
Min |
2000-3600 |
||
Pump flushing flow |
L/min |
15 |
||
Water temperature |
℃ |
98 |
||
Flushing pressure |
bar |
210 |
||
Fuel consumption |
L/H |
5.9 |
||

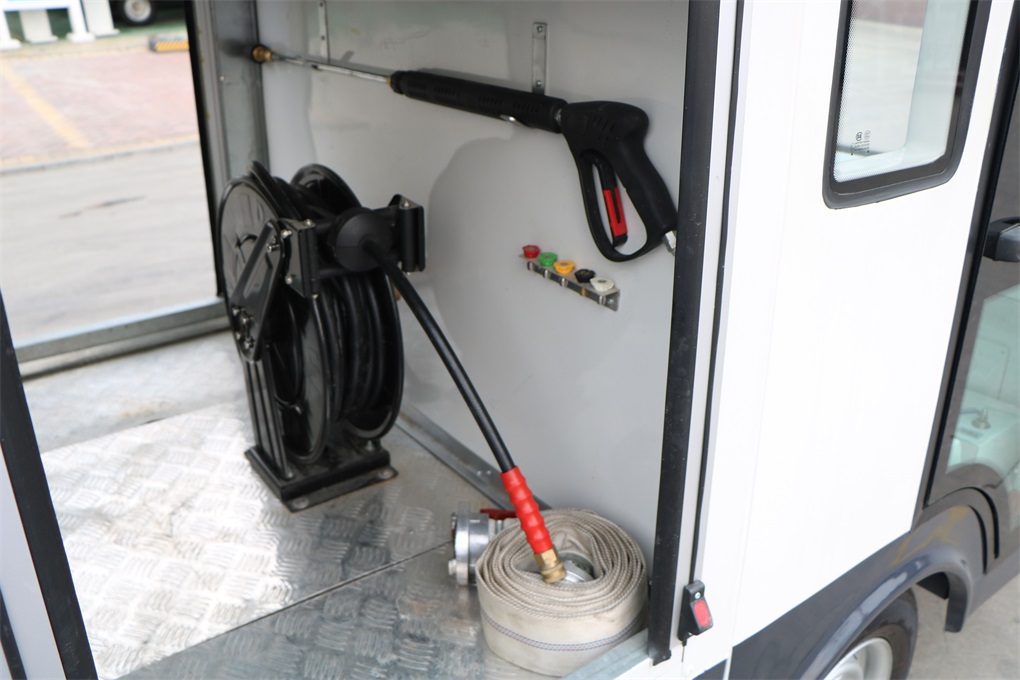

High pressure tube length |
M |
15 |
||
Climb performance |
Max grade |
/ |
≤20% |
|
Max parking gradient |
/ |
≤15% |
||
Tire performance |
Front / rear model |
/ |
155R12C |
|
Quantity |
只 |
4 |
||
Rated load |
kg |
560 |
||
Tire pressure |
Kpa |
450(±1%) |
||
Motor performance |
Rated voltage |
V |
72 |
|
Rated power |
kw |
4.2 |
||
Rated speed |
r/min |
2500 |
||
Rated torque |
N·m |
21 |
||
Protection level |
/ |
IP44 |
||
Battery performance |
Quantity |
pcs |
12 |
|
Capacity |
Ah |
210 |
||
Model |
/ |
3-EVF-210 |
||
Charging time |
h |
8 |
