Technic Parameters

Item Name

Unit

Specification

Rated Occupant

Person

1

Dimension

Length

mm

3015（±2%）

Width

mm

1055（±2%）

Height

mm

1945（±1%）

Wheelbase

Front track

mm

/

Rear track

mm

895（±1%）

Wheel tread

mm

1850±1%）

Car body

Box length

mm

1400（±2%）

Box width

mm

975（±2%）

Box height

mm

1355（±2%）

Volume

L

700

Quality

parameter

Curb weight

kg

550（±2%）

Rated load

kg

700

Travel

performance

Max.speed

km/h

≤30

Range

km

≥80

Power consumption

kWh

≤15

Brake

Performance

Braking method

/

Hydraulic brake

Brake type

/

Hub brake

Braking distance (unloaded)

m

≤4

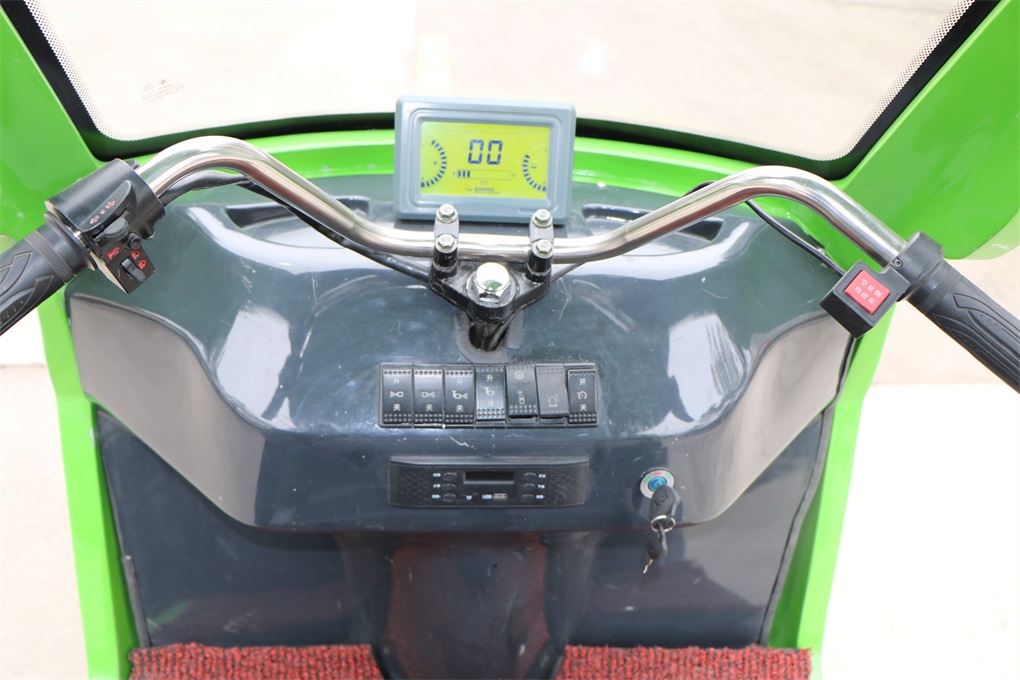

Steering performance

High temperature washing system

Steering method

/

Steering wheel

Steering assist

/

EPS

Minimum turning radius

m

≤5

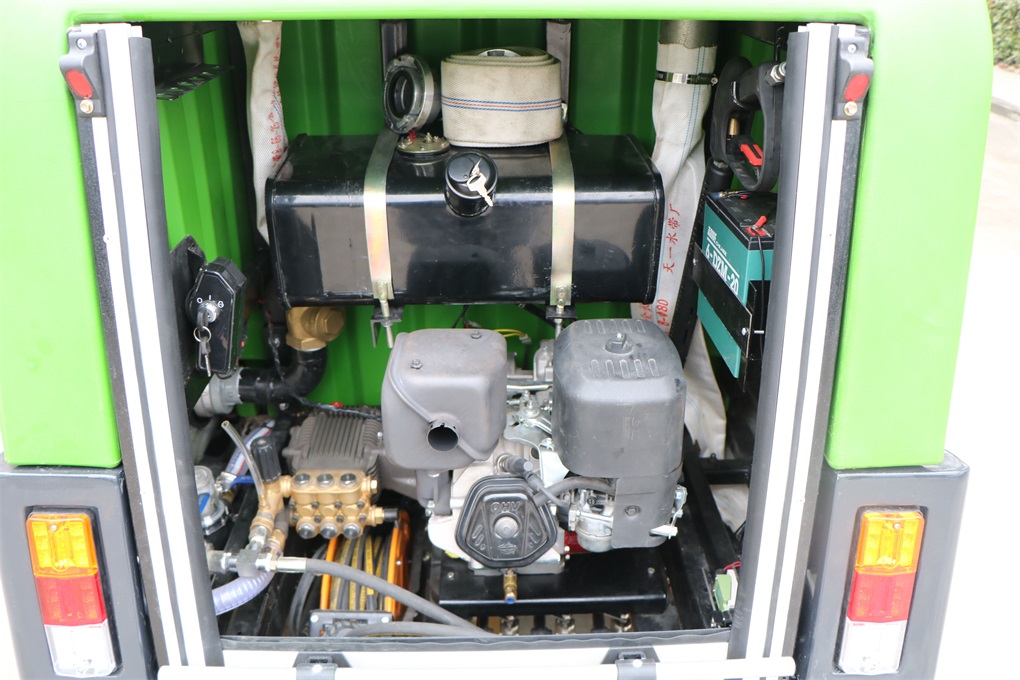

Engine

Brand

Karcher

Engine power

HP

10

KW

9.5

Fuel tank capacity

L

32

Oil model

#

0# / -10# Diesel

Engine speed

Min

2000-3600

Pump flushing flow

L/min

15

Flushing pressure

bar

240

Fuel consumption

L/H

5.9

High pressure tube length

M

15

Climb performance

Max grade

/

≤20%

Max parking gradient

/

≤15%

Tire

performance

Front / rear model

/

155R12C

Quantity

只

4

Rated load

kg

560

Tire pressure

Kpa

450（±1%）

Motor

performance

Rated voltage

V

48

Rated power

kw

4.2

Rated speed

r/min

2500

Rated torque

N·m

21

Protection level

/

IP44

Battery

performance

Quantity

pcs

12

Capacity

Ah

210

Model

/

3-EVF-210

Charging time

h

8
