● 8pcs,210Ah Maintenance-free battery
● American Curtis electric controller
● EPS system
● Radial tires
<
>

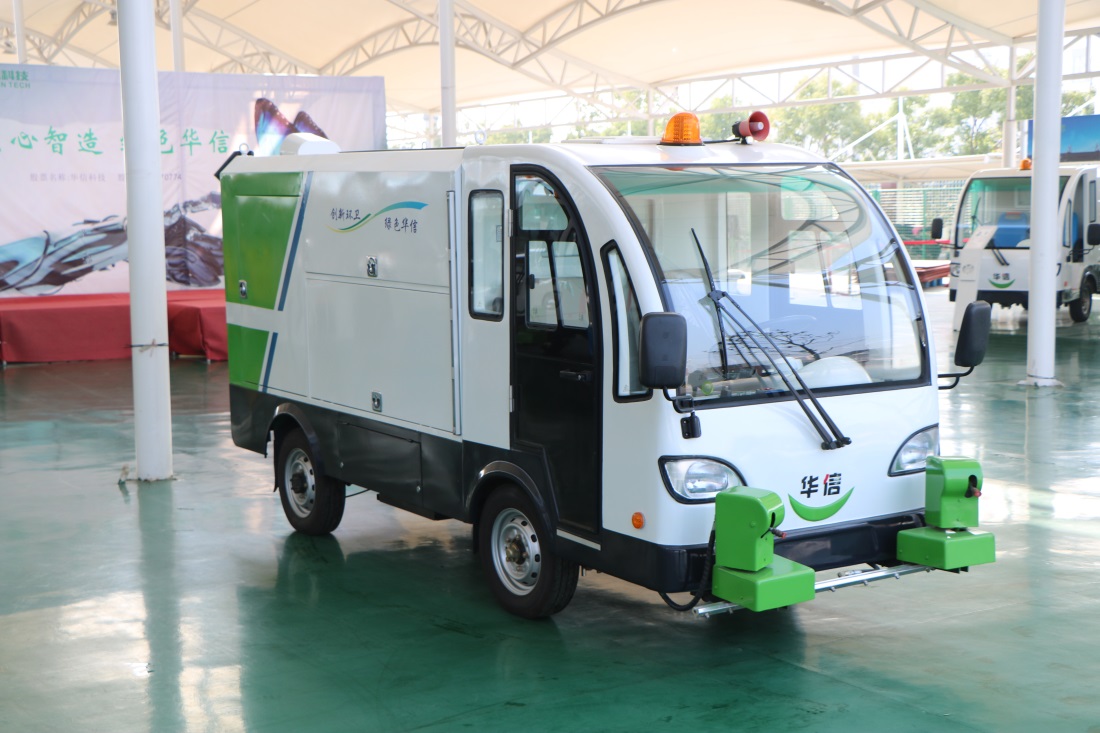

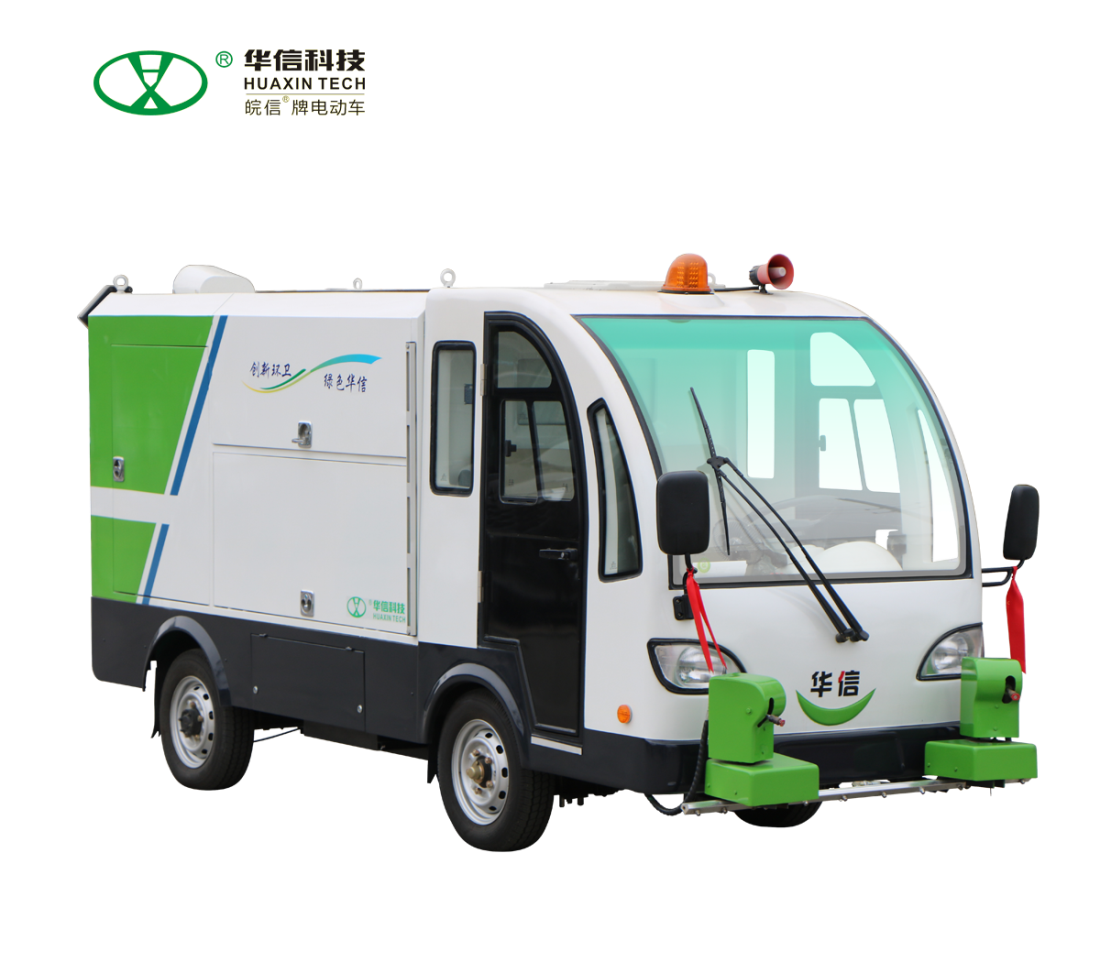

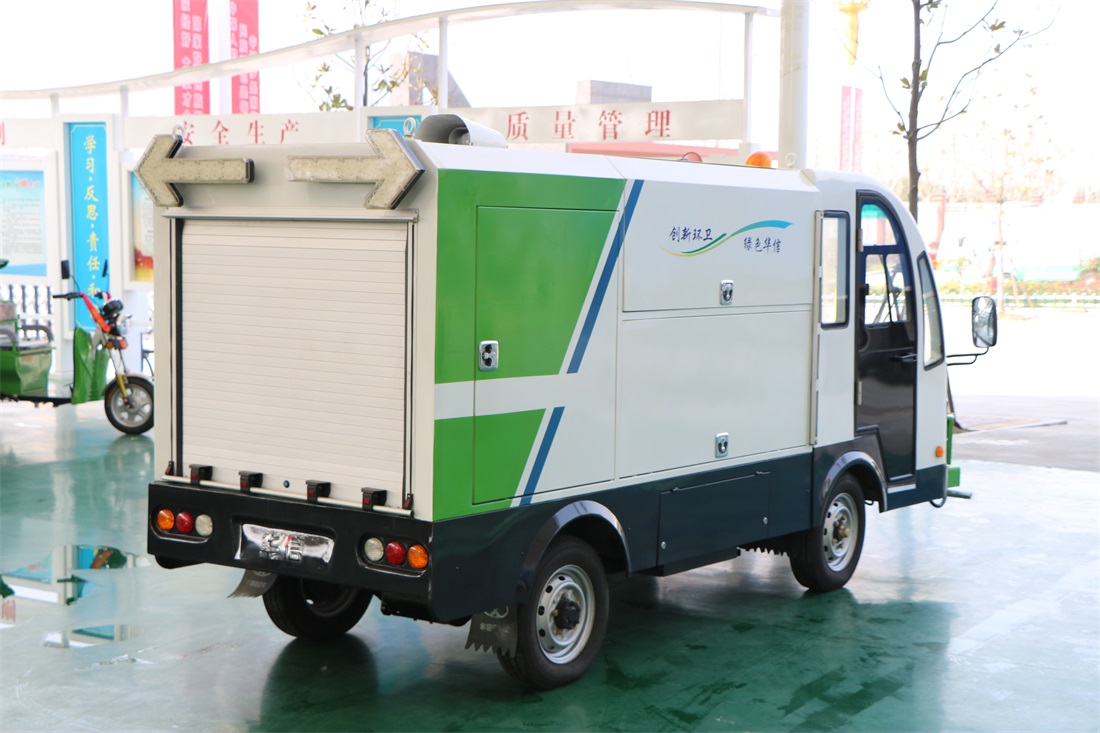

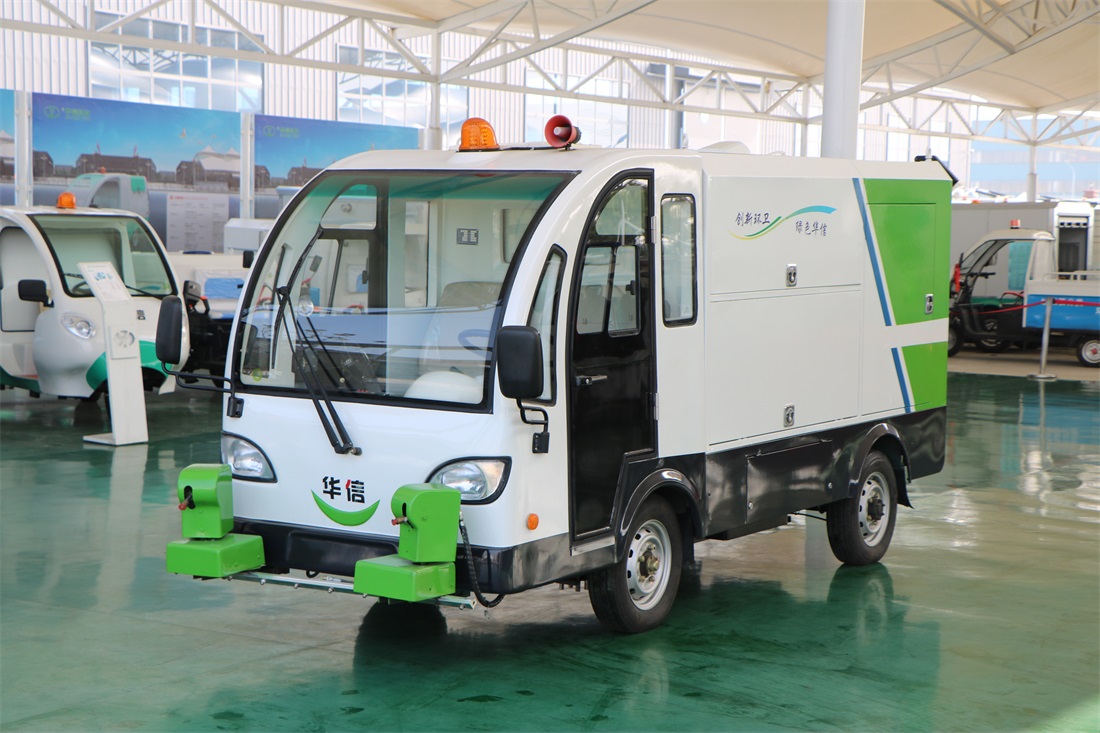

CX4501
CX4501
Characteristic
Product description
● Aluminum frame and glass door as the cabin.
● Four wheel hydraulic drum brake and parking brake.
● Equipped with EPS electronic power steering system, the steering is more convenient;
● Curtis controllers are imported from US manufacturer directly!
Technic Parameters
|
Technic Parameters |
||||
|
Item Name |
Unit |
Specification |
||
|
Rated Occupant |
Person |
2 |
||
|
Dimension |
Length |
mm |
4500（±2%） |
|
|
Width |
mm |
1400（±2%） |
||
|
Height |
mm |
2100（±1%） |
||
|
Wheelbase |
Front track |
mm |
1200（±1%） |
|
|
Rear track |
mm |
1200（±1%） |
||
|
Wheel tread |
mm |
2130±1%） |
||
|
Car body |
Box length |
mm |
1390（±2%） |
|
|
Box width |
mm |
860（±2%） |
||
|
Box height |
mm |
1085（±2%） |
||
|
Volume |
L |
1200 |
||
|
Quality parameter |
Curb weight |
kg |
1300（±2%） |
|
|
Rated load |
kg |
1250 |
||
|
Travel performance |
Max.speed |
km/h |
≤30 |
|
|
Range |
km |
≥80 |
||
|
Power consumption |
kWh |
≤15 |
||
|
Brake Performance |
Braking method |
/ |
Hydraulic brake |
|
|
Brake type |
/ |
Hub brake |
||
|
Braking distance (unloaded) |
m |
≤4 |
||
|
Steering performance

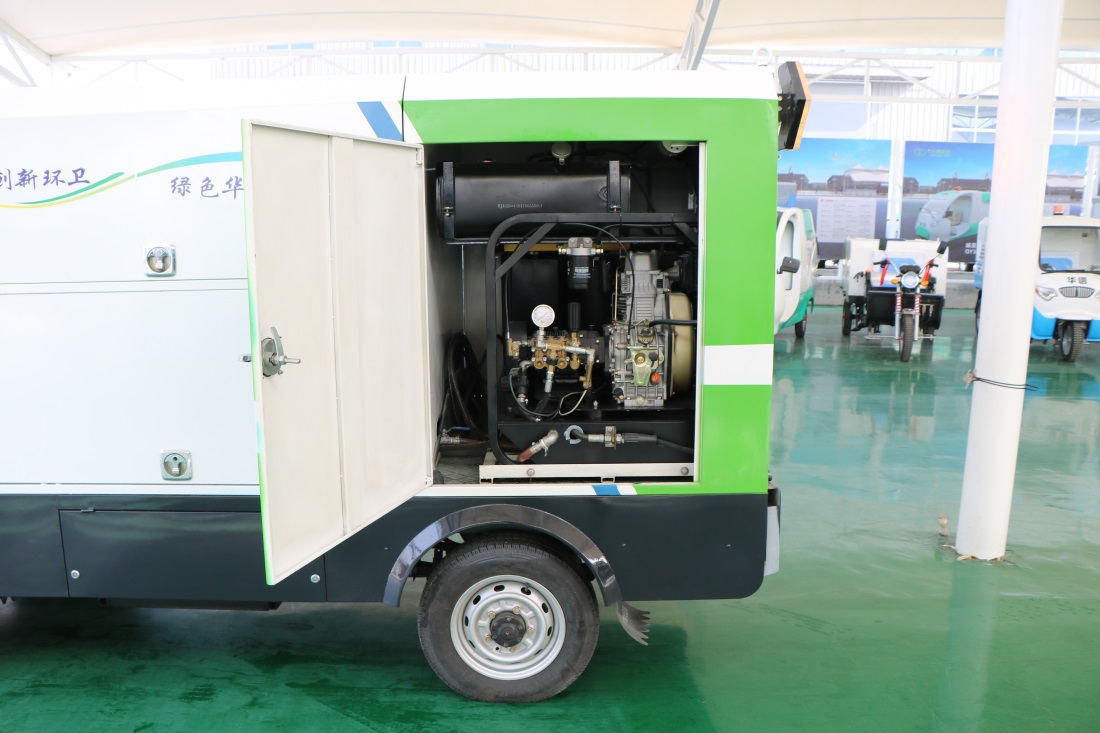

High temperature washing system |
Steering method |
/ |
Steering wheel |
|
|
Steering assist |
/ |
EPS |
||
|
Minimum turning radius |
m |
≤5 |
||
|
Engine |
Brand |
Karcher |
||
|
Engine power |
HP |
10 |
||
|
KW |
7.5 |
|||
|
Fuel tank capacity |
L |
32 |
||
|
Oil model |
# |
0# / -10# Diesel |
||
|
Engine speed |
Min |
2000-3600 |
||
|
Pump flushing flow |
L/min |
15 |
||
|
Water temperature |
℃ |
98 |
||
|
Flushing pressure |
bar |
210 |
||
|
Fuel consumption |
L/H |
5.9 |
||
|
High pressure tube length |
M |
15 |
||
|
Climb performance |
Max grade |
/ |
≤20% |
|
|
Max parking gradient |
/ |
≤15% |
||
|
Tire performance |
Front / rear model |
/ |
155R12C |
|
|
Quantity |
只 |
4 |
||
|
Rated load |
kg |
560 |
||
|
Tire pressure |
Kpa |
450（±1%） |
||
|
Motor performance |
Rated voltage |
V |
72 |
|
|
Rated power |
kw |
4.2 |
||
|
Rated speed |
r/min |
2500 |
||
|
Rated torque |
N·m |
21 |
||
|
Protection level |
/ |
IP44 |
||
|
Battery performance |
Quantity |
pcs |
12 |
|
|
Capacity |
Ah |
210 |
||
|
Model |
/ |
3-EVF-210 |
||
|
Charging time |
h |
8 |
||
