● 2-Sets 72v*210Ah maintenance-free batteries
● 8.5kw high torque DC driving motor
● American CURTIS electric controller
<
>
FT4601
Characteristic
Product description
Characters:
● 4.5cbm large loading capacity

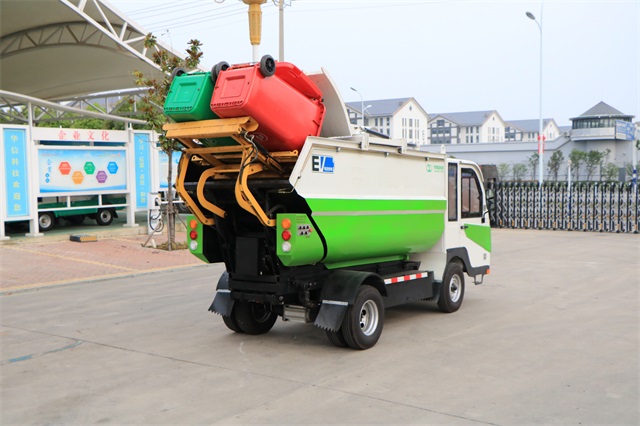

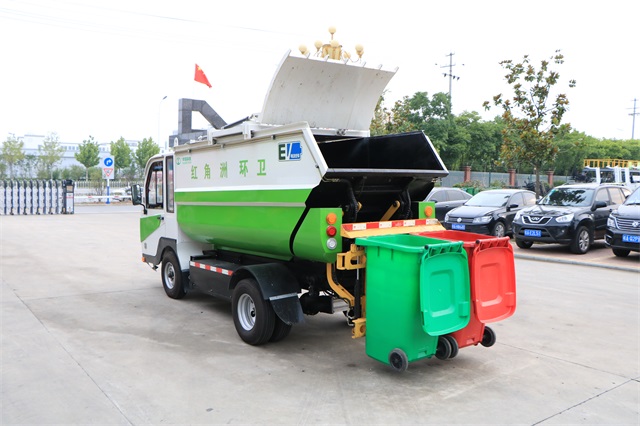

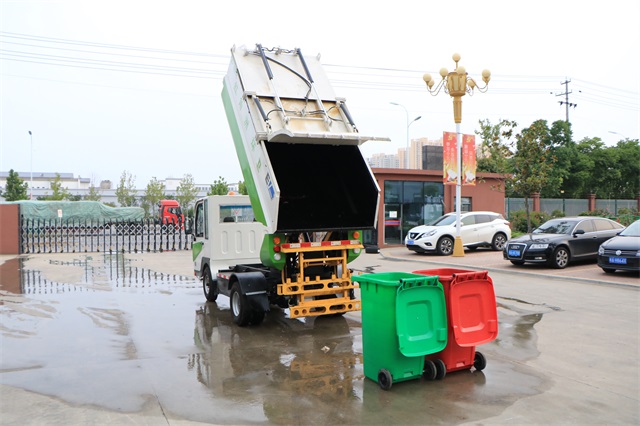

● Can tipper 120L&240L dustbins can be tipped at one time
● Rear compression device to increase the loading capacity
● EPS system
Technic Parameters
|
Technic Parameters |
|||
|
Name |
Unit |
Specification |
|
|
Rated Occupant |
Person |
2 |
|
|
Overall dimension(L*W*H) |
mm |
L4860*W1670*H2270 |
|
|
Wheelbase |
Front track |
mm |
1200 |
|
Rear track |
mm |
1070 |
|
|
Wheel tread |
mm |
2500 |
|
|
Ground clearance |
mm |
180 |
|
|
Garbage Box(L*W*H) |
mm |
L3230*W1480*H1310 |
|
|
Volume |
m³ |
4.5 |
|
|
Curb weight |
kg |
2300 |
|
|
Rated load |
kg |
1500 |
|
|
Max.speed |
km/h |
≤25 |
|
|
Range |
km |
≥60 |
|
|
Braking distance |
m |
≤4.5 |
|
|

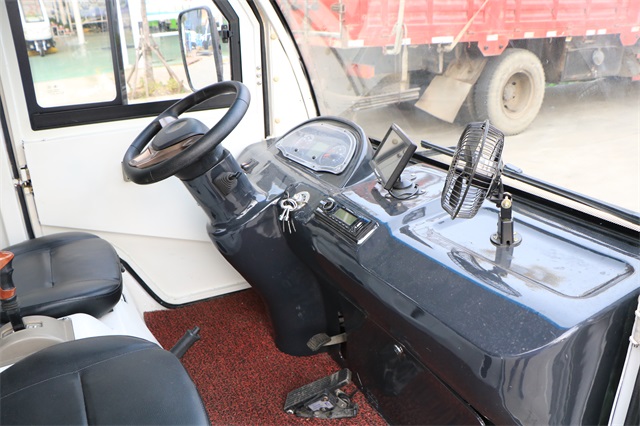

Steering method |
/ |
Steering wheel+EPS |
|
|
Min turning radius |
m |
≤5 |
|
|
Max grade |
/ |
≤20% |
|
|
Rated voltage |
V |
72 |
|
|
Motor |
kw |
8.5 |
|
|
Quantity |
pcs |
12 |
|
|
Capacity |
Ah |
210 |
|
|
Charging time |
h |
6-8 |
|
