● 8pcs,210Ah Maintenance-free battery
● American Curtis electric controller
● EPS system
● Radial tyres
<
>
FT4301
Characteristic
Product description

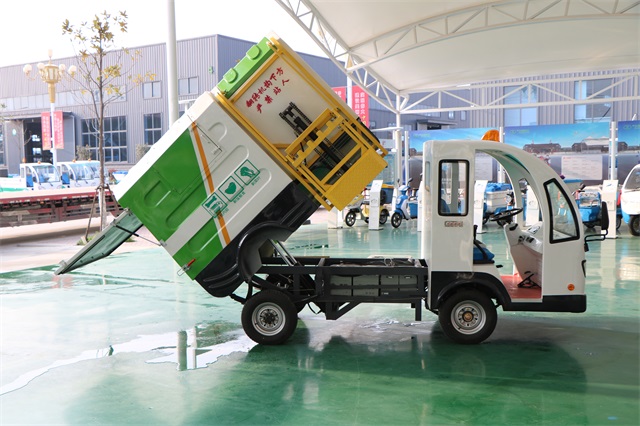

● Hydraulic device, one person can complete the loading and unloading and overall transfer of garbage bin cargo;
● The tire uses a radial vacuum tire, which has a long wear-resistant life;
● Equipped with EPS electronic power steering system, the steering is more convenient;

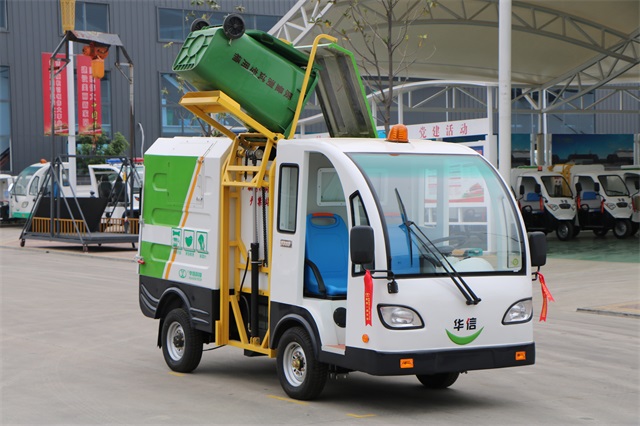

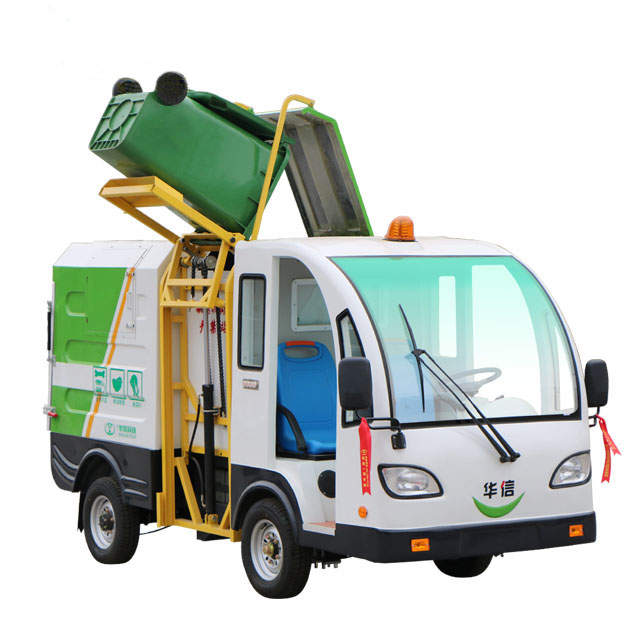

● Control button can realize the functions of bucket lifting, bucket lowering, cargo compartment rising, cargo falling, etc.
Technic Parameters
|
Technic Parameters |
|||
|
Item Name |
Unit |
Specification |
|
|
Rated Occupant |
Person |
2 |
|
|
Overall dimension(L*W*H) |
mm |
1540*1950*1260（±2%） |
|
|
Wheelbase |
Front track |
mm |
1260 |
|
Rear track |
mm |
1260 |
|
|
Wheel tread |
mm |
1930 |
|
|
Garbage Box(L*W*H) |
mm |
2345*1330*1220（±2%） |
|
|
Volume |
m³ |
3.5 |
|
|
Curb weight |
kg |
1420 |
|
|
Rated load |
kg |
800 |
|
|
Max.speed |
km/h |
≤30 |
|
|
Range |
km |
≥80 |
|
|
Steering |
/ |
Steering wheel+EPS |
|
|
Min turning radius |
m |
≤5 |
|
|
Max grade |
/ |
≤20% |
|
|
Rated voltage |
V |
72 |
|
|
Rated power |
kw |
5.5 |
|
|
Capacity |
Ah |
210 |
|
|
Charging time |
h |
12 |
|
