● Maintenance-free battery is optional
● Lorry tyres,large loading capacity
● Integrated differential rear axle
● 2.3 and 3.5cbm loading capacity for chosing
<
>
● Maintenance-free battery is optional
● Lorry tyres,large loading capacity
● Integrated differential rear axle
● 2.3 and 3.5cbm loading capacity for chosing
Product description
Characters:

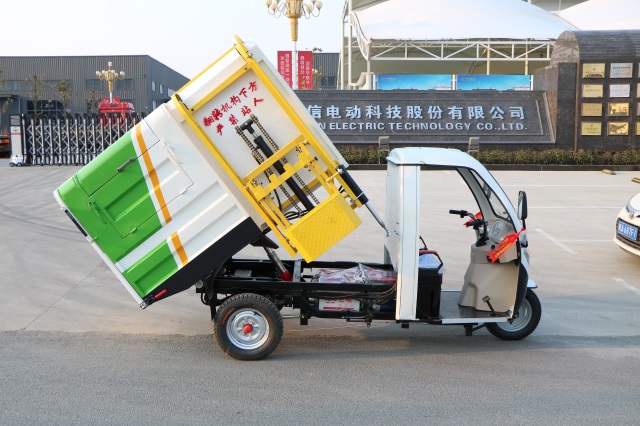

● Hydraulic lifting & dumping
● Quick side garbage throw-in mouth
● Doors is optional for rainy and cold weather.
Technic Parameters
Technic Parameters |
||
Item Name |
Unit |
Specification |
Rated Occupant |
Person |
1 |
Overall dimension(L*W*H) |
mm |
3270*1350*1830(±20) |
Wheel tread |
mm |
2200 |
Ground clearance |
mm |
180 |
Garbage box (L*W*H) |
mm |
1090*1150*1210(±20) |
Volume |
m³ |
2.3 |
Curb weight |
kg |
780 |
Rated load |
kg |
600 |
Max.speed |
km/h |
≤25 |
Range |
km |
≥60 |
Minimum turning radius |
m |
≤4 |
Max grade |
/ |
≤15% |
Rated voltage |
V |
72 |
Motor |
kw |
2.5 |
Capacity |
Ah |
120 |
Charging time |
h |
6-8 |
