● 8pcs,210Ah Maintenance-free battery
● American Curtis electric controller
● EPS system
● Radial tires
<
>

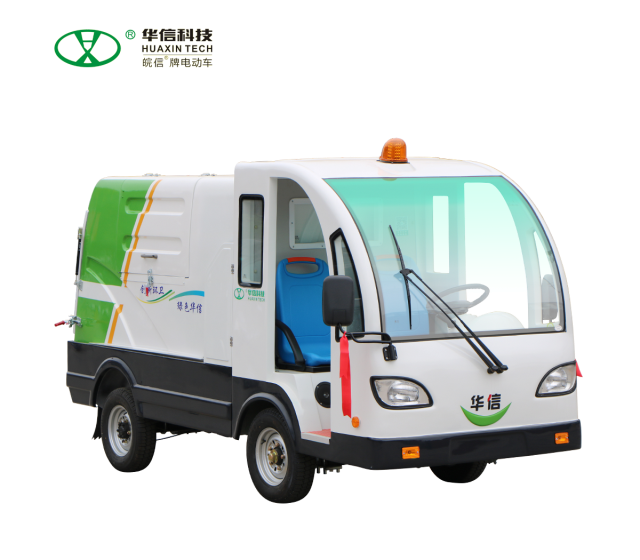

QY4301
QY4301
Characteristic
Product description

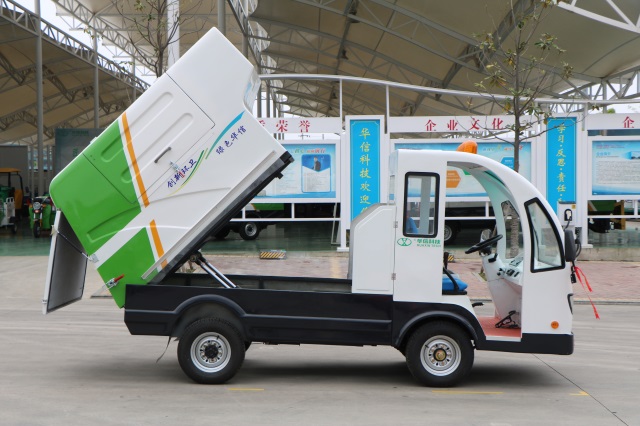

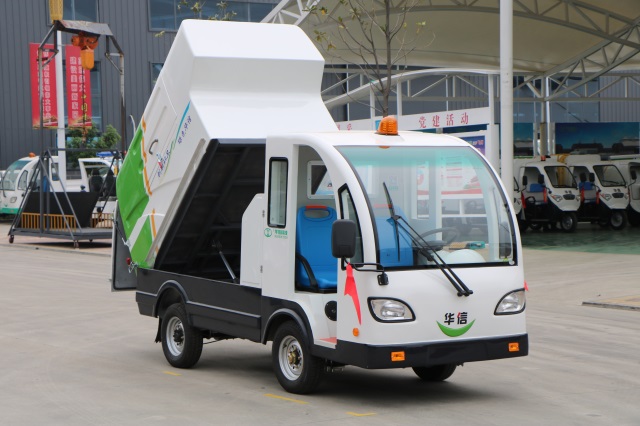

● Hydraulic device, one person can complete the loading and unloading and overall transfer of garbage bin cargo;
● The tire uses a radial vacuum tire, which has a long wear-resistant life;
● Equipped with EPS electronic power steering system, the steering is more convenient;
● Control button can realize the functions of cargo compartment rising, cargo falling, etc.
Technic Parameters
|
Technic Parameters |
||||
|
Item Name |
Unit |
Specification |
||
|
Rated Occupant |
Person |
2 |
||
|
Dimension |
Length |
mm |
3720（±2%） |
|
|
Width |
mm |
1440（±2%） |
||
|
Height |
mm |
2100（±1%） |
||
|
Wheelbase |
Front track |
mm |
1220（±1%） |
|
|
Rear track |
mm |
1220（±1%） |
||
|
Wheel tread |
mm |
1870（±1%） |
||
|
Car body |
Box length |
mm |
2160（±2%） |
|
|
Box width |
mm |
1290（±2%） |
||
|
Box height |
mm |
1170（±2%） |
||
|
Volume |
m³ |
2.7 |
||
|
Quality parameter |
Curb weight |
kg |
1260（±2%） |
|
|
Rated load |
kg |
800 |
||
|
Travel performance |
Max.speed |
km/h |
≤30 |
|
|
Range |
km |
≥80 |
||
|
Power consumption |
kWh |
≤15 |
||
|
Brake Performance |
Braking method |
/ |
Hydraulic brake |
|
|
Brake type |
/ |
Hub brake |
||
|
Braking distance (unloaded) |
m |
≤4 |
||
|
Steering performance
Hydraulic system |
Steering method |
/ |
Steering wheel |
|
|
Steering assist |
/ |
EPS |
||
|
Minimum turning radius |
m |
≤5 |
||
|
Box tipping angle |
° |
45 |
||
|
Box lifting time |
s |
≤22 |
||
|
Box decline time |
s |
≤16 |
||
|
Hydraulic oil model |
# |
Summer:46# ，Winter:32# |
||
|
Climb performance |
Max grade |
/ |
≤20% |
|
|
Max parking gradient |
/ |
≤15% |
||
|
Tire performance |
Front / rear model |
/ |
155R12C |
|
|
Quantity |
只 |
4 |
||
|
Rated load |
kg |
560 |
||
|
Tire pressure |
Kpa |
450（±1%） |
||
|
Motor performance |
Rated voltage |
V |
48 |
|
|
Rated power |
kw |
4.2 |
||
|
Rated speed |
r/min |
2500 |
||
|
Rated torque |
N·m |
21 |
||
|
Protection level |
/ |
IP44 |
||
