● Maintenance-free battery is optional
● Lorry tires ,large loading capacity
● The vehicle adopts steering wheel steering mechanism to reduce the difficulty of operation.
<
>
● Maintenance-free battery is optional
● Lorry tires ,large loading capacity
● The vehicle adopts steering wheel steering mechanism to reduce the difficulty of operation.
Product description
Characters:

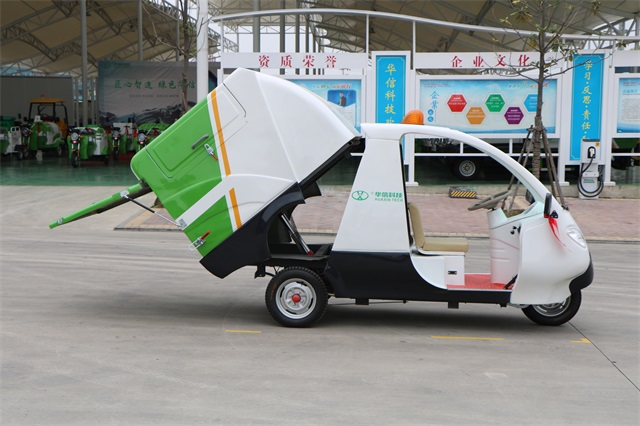

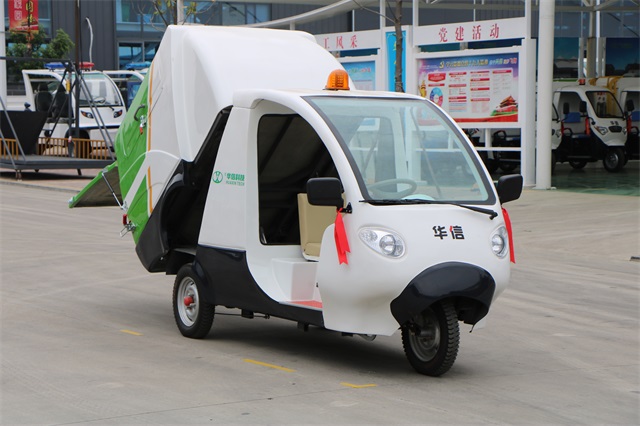

● Hydraulic dumping.
● Easy operation.
● Doors is optional for rainy and cold weather.
Technic Parameters
Technical Parameters |
||||
Item Name |
Unit |
Specification |
||
Rated Occupant |
Person |
1 |
||
Dimension |
Length |
mm |
3200(±20) |
|
Width |
mm |
1450(±20) |
||
Height |
mm |
2800(±20) |
||
Wheelbase |
Front track |
mm |
/ |
|
Rear track |
mm |
1050 |
||
Wheel tread |
mm |
2130 |
||
Ground clearance |
mm |
140 |
||
Car body |
Box length |
mm |
1600(±20) |
|
Box width |
mm |
1270(±20) |
||
Box height |
mm |
1050(±20) |
||
Volume |
m³ |
1.8 |
||
Car body |
Box length |
/ |
Fiberglass |
|
Quality parameter |
Curb weight |
kg |
600 |
|
Rated load |
kg |
600 |
||
Travel performance |
Max.speed |
km/h |
≤25 |
|
Range |
km |
≥60 |
||
Power consumption |
kWh |
12 |
||
Hydraulic system |
Box tipping angle |
° |
≥42 |
|
Hydraulic oil model |
# |
Summer:46# ,Winter:32# |
||
Climb performance |
Max grade |
/ |
≤15% |
|
Max parking gradient |
/ |
≤15% |
||
Motor performance |
Rated voltage |
V |
60 |
|
Rated power |
kw |
2.5 |
||
Rated speed |
r/min |
3500 |
||
Rated torque |
N·m |
6.8 |
||
Protection level |
/ |
IP44 |
||
Electronic controller |
Input voltage range |
V |
38-90 |
|
Max output power |
kw |
4032 |
||
Undervoltage protection |
V |
38 |
||
Protection class |
/ |
IP65 |
||
Battery performance |
Quantity |
pcs |
5 |
|
Capacity |
Ah |
120 |
||
Charging time |
h |
6-8 |
