● 210Ah 8pcs large amper maintenance-free battery
● American CURTIS electric-controller
● 4.2kw high power DC driving motor
<
>
● 210Ah 8pcs large amper maintenance-free battery
● American CURTIS electric-controller
● 4.2kw high power DC driving motor
Product description
Characters:

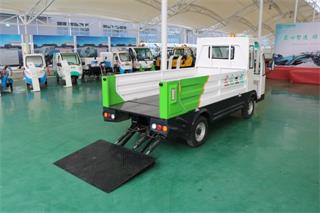

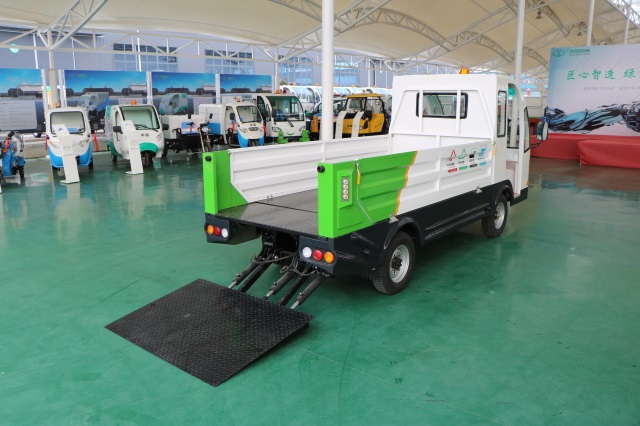

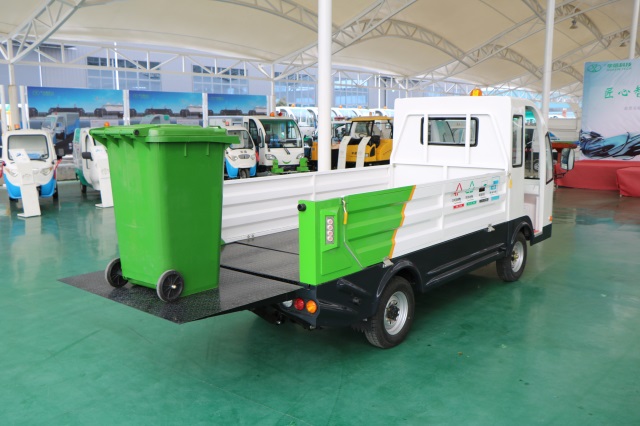

● Hydraulic tail plate,easy for loading

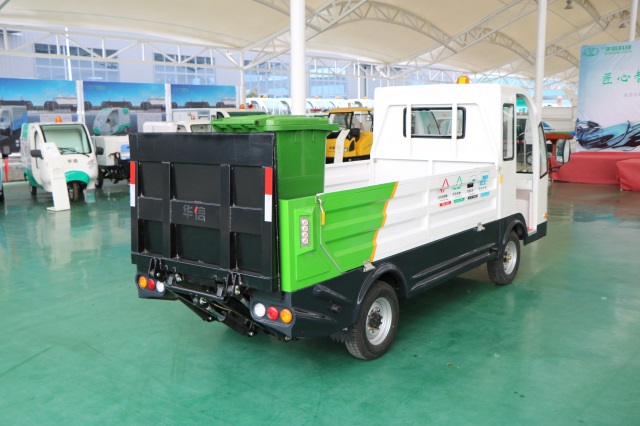

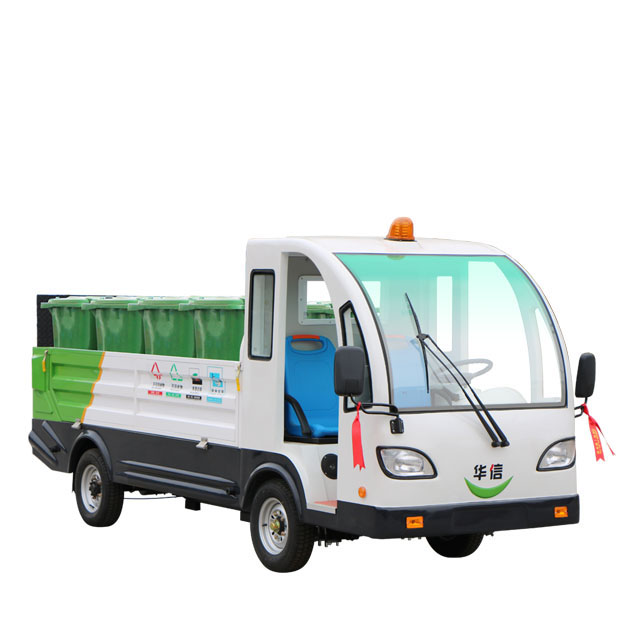

● Can load 6(8)pcs standard garbage bins for one time
● EPS system,light for steering
● 12-inch radial tire, wear-resistant and long life
● Non-slip floor to avoid rubbish bin collision
● Intelligent charger,Short circuit protection, full power off
Technic Parameters
Technic Parameters |
||||
Name |
Unit |
ZT4306 |
ZT4308 |
|
Rated Occupant |
Persons |
2 |
2 |
|
Quantity of Garbage bins |
240L |
6pcs |
8pcs |
|
Length |
mm |
3900 |
4680 |
|
Width |
mm |
1470 |
1470 |
|
Height |
mm |
2100 |
2100 |
|
Wheelbase |
Front track |
mm |
1200 |
1200 |
Rear track |
mm |
1200 |
1200 |
|
Wheel tread |
mm |
1780 |
2470 |
|
Ground clearance |
mm |
170 |
170 |
|
Rear box dimension(L*W*H) |
mm |
2270*1380*510 |
3020*1380*510 |
|
Curb weight |
kg |
1050 |
1250 |
|
Rated load |
kg |
800 |
800 |
|
Max.speed |
km/h |
≤30 |
≤30 |
|
Range |
km |
≥80 |
≥80 |
|
Steering |
/ |
Steering wheel+EPS |
||
Minimum turning radius |
m |
≤4.5 |
≤5 |
|
Rated voltage |
V |
48 |
||
Motor |
kw |
4.2 |
||
Capacity |
Ah |
210 |
||
Charging time |
h |
6-8 |
