● 1500w Brushless motor
● Lorry tyres,large loading capacity
● Lithium battery is optional
● Led headlight
<
>
ZT3204
ZT3204
Characteristic
Product description
Characters:
● Can load 4 240L standard trash cans;
● Anti-skid plates to prevent the trash can from slipping during transportation

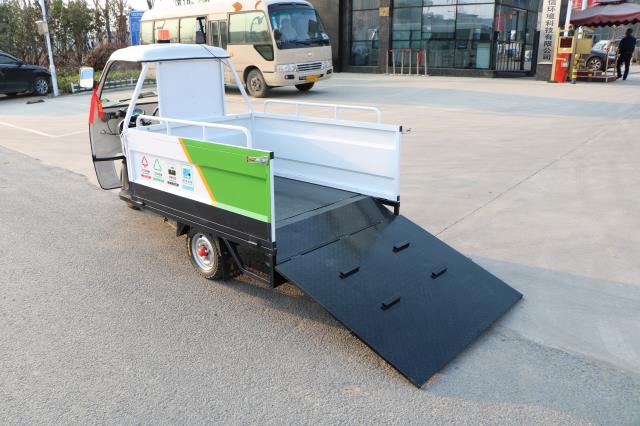

● Lifting tail plate device, the trash can can be transferred up the tail plate to the interior,convenient to operate.
●Anti-skateboard, protecting the collision of bins during transportation
Technic Parameters
|
Technic Parameters |
|||
|
Item name |
Unit |
Specification |
|
|
Rated Occupant |
Person |
1 |
|
|
Overall dimension(L*W*H) |
mm |
L3100*W1370*H1750 |
|
|
Wheelbase |
Front track |
mm |
/ |
|
Rear track |
mm |
1060 |
|
|
Wheel tread |
mm |
2060 |
|
|
Ground clearance |
mm |
160 |
|
|
Curb weight |
kg |
420 |
|
|
Rated load |
kg |
800 |
|
|
Max.speed |
km/h |
≤25 |
|
|
Range |
km |
≥60 |
|
|
Rated load |
kg |
450 |
|
|
Rated voltage |
V |
48 |
|
|
Motor |
kw |
1.5 |
|
|
Capacity |
Ah |
85 |
|
|
Charging time |
h |
6-8 |
|
parameter
