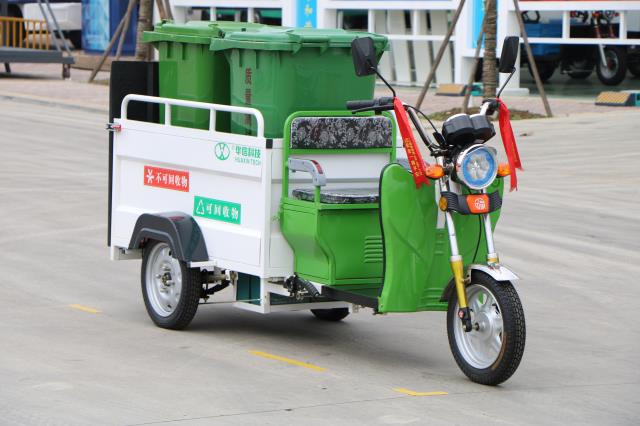

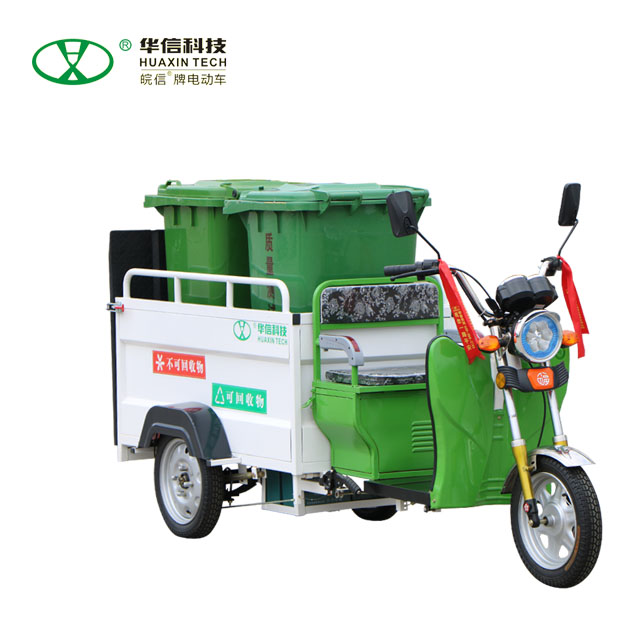

 Electric Garbage Tricycle

<

>

ZT3202

Characteristic

● 45Ah maintenance-free battery

● Led headlight

● Tubeless tyre

● Intelligent charger,Power-off protection

Product description




Characters:

● 2pcs 240L garbage bin for one time

●Tail plate,easy for bins loading

●15% high climb ability

● Intelligent anti-theft system to ensure the safety of the vehicle.

Technic Parameters



Technic Parameters

Name

Unit

Specification

Rated Occupant

Persons

1

Quantity of Dustbin

pcs

2

Overall dimension(L*W*H)

mm

L2740*W960*H1150±20

Wheelbase

Front track

mm

/

Rear track

mm

820

Wheel tread

mm

1850

Ground clearance

mm

120

Curb weight

kg

200

Rated load

kg

200

Max.speed

km/h

≤20

Range

km

≥40

Braking distance (unloaded)

m

≤3

Rated voltage

V

48

Motor

w

850

Capacity

Ah

32

Charging time

h

6-8
