● Maintenance-free battery
● LED headlight
● Intermediate motor
<
>
BJ3014
Model444
Characteristic
Product description

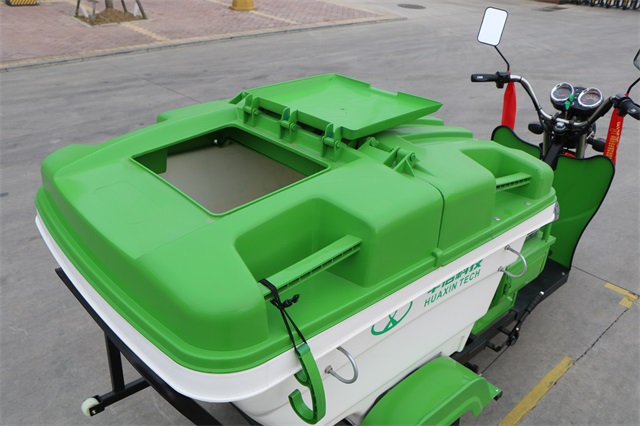

● Foldable top cover,convenient for big garbage throw in
● Built-in small garbage inlet,convenient for small garbage throw in

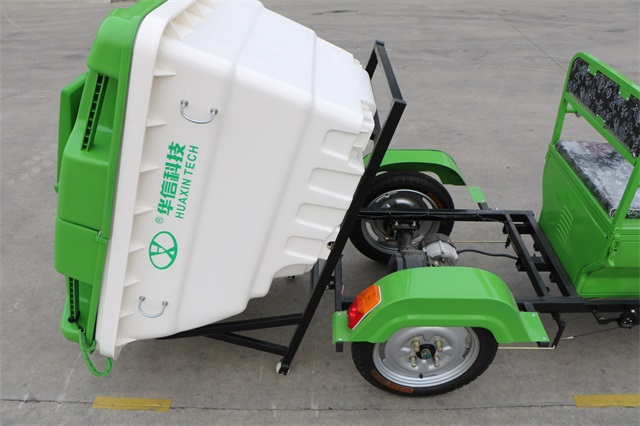

● Self-dumping design,decrease the labour of operator
● 15% climb ability,suitable for most roads
Technic Parameters
|
Technic Parameters |
||
|
Name |
Unit |
Specification |
|
Rated Occupant |
Person |
1 |
|
Overall dimension(L*W*H) |
mm |
2300*920*1150（±20） |
|
Wheel tread |
mm |
1530 |
|
Ground clearance |
mm |
120 |
|
Volume |
L |
500 |
|
Curb weight |
kg |
130 |
|
Rated loading |
kg |
150 |
|
Max.speed |
km/h |
≤20 |
|
Range |
km |
≥60 |
|
Rated voltage |
V |
48 |
|
Quantity |
pcs |
4 |
|
Capacity |
Ah |
20 |
|
Charging time |
h |
6-8 |
Packing & Delivery
