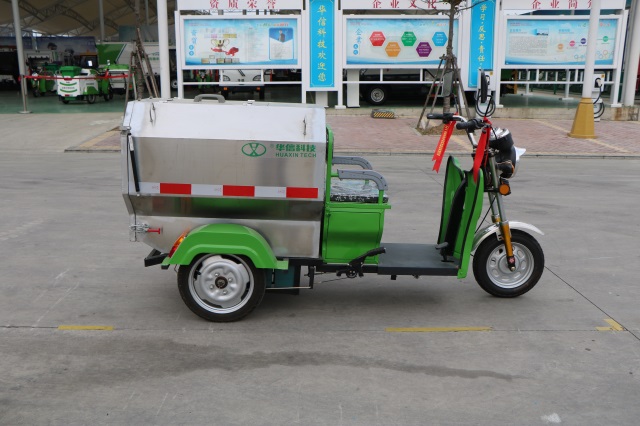

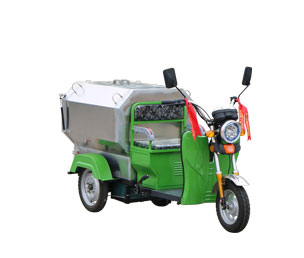

 Electric Garbage Tricycle

<

>

QY3103

Characteristic

● Maintenance-free batteries

● Led headlight

● Intelligent controller

Product description




Characters:

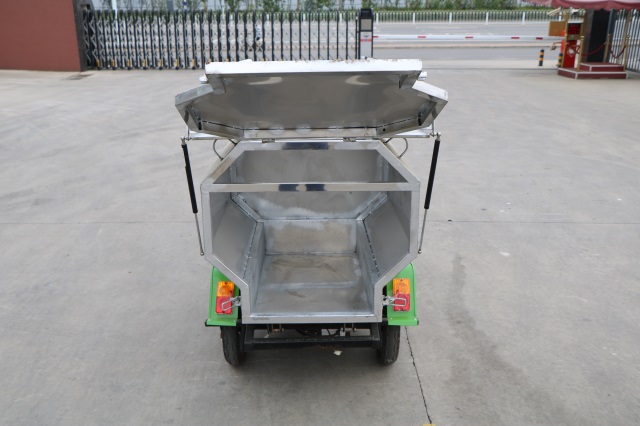

● Stainless-steel garbage box,Corrosion and impact resistance

● 32ah maintenance-free battery, greatly improving the cruising range

● 460 litre large trash can

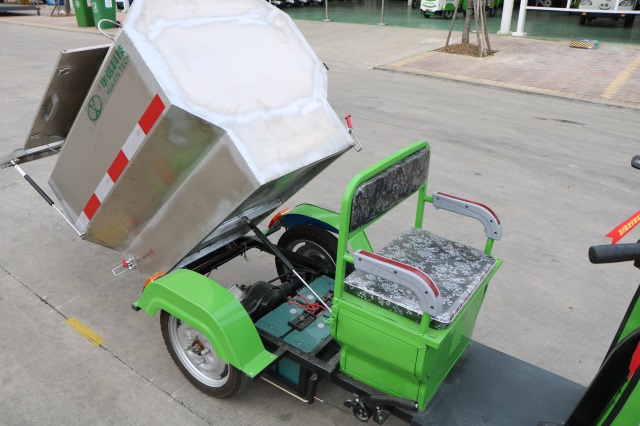

● Self-dumping,decrease the labor of operator

● Broom bracket,convenient for fast cleaning

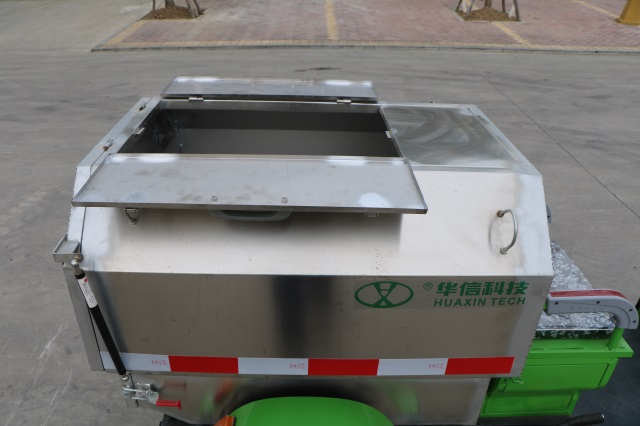

● Top garbage throw-in mouth,easy for fast-cleaning

Technic Parameters



Technic Parameters

Name

Unit

Specification

Rated Occupant

Person

1

Overall dimension(L*W*H)

mm

L2250*W920*H1150

Wheel tread

mm

1530

Ground clearance

mm

120

Garbage box(L*W*H)

mm

L950*W790*H770

Volume

L

460

Material

/

Stainless steel

Curb weight

kg

240

Rated load

kg

150

Max.speed

km/h

≤25

Range

km

50

Braking distance (unloaded)

m

≤3

Max grade

/

≤15%

Rated voltage

V

48

Motor

W

580

Capacity

Ah

32

Charging time

h

6-8
