  H3 Golf Cart

<

>

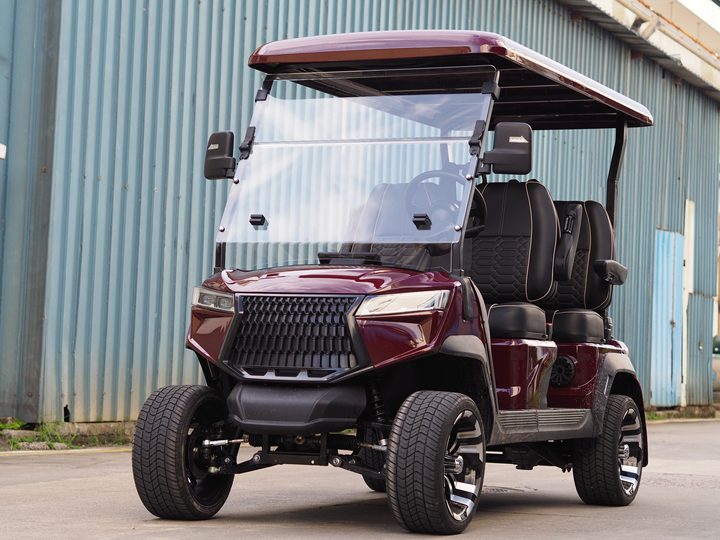

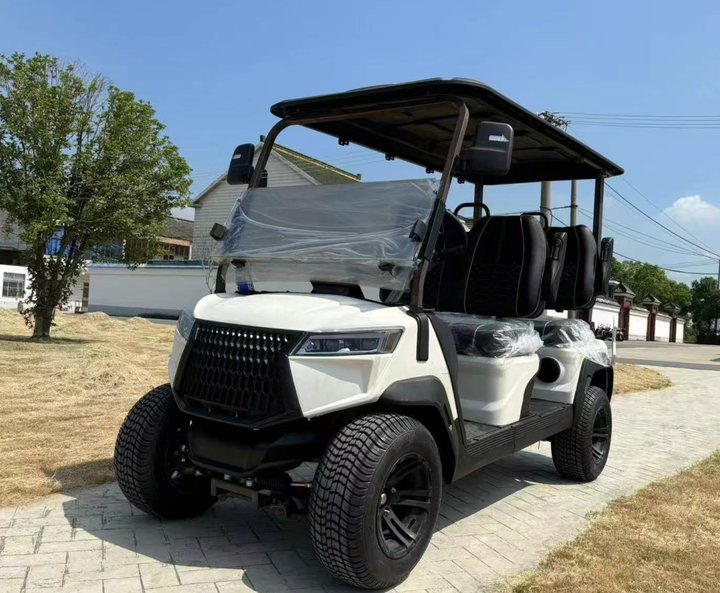

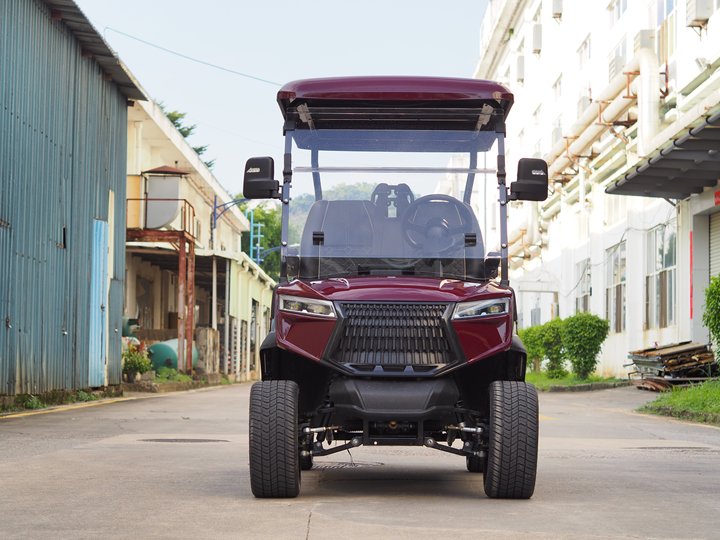

Huaxin Golf Cart Customized Color 4/6 Seats Off Road Buggy Electric Golf Cart

Characteristic
Minimum Grand Clearance
150-200mm
Curb Weight
300-400kg
Maximum Speed
30-50Km/h
Grade Ability
≥25°
Driving Mileage
≥90km
Standing Postion of Tail Caddie
Equipped
Seats
1 - 2
Certification
ce
Brake System
Front disc+Rear drum
Tire Size
23*10-14
Dimension
2520x1340x1990
Charge Time(h)
7-9h
Fuel Type
Electric
Product name
electr golf cart 48V/72V cool 2 seats golf carts
Type
2 Person Electric Golf Cart
Battery
48V 150Ah lead aicd, 48V134 AH Lithium Battery, 72V120AH Lithium B
Max speed
30-40km/h
Range
80-120kms
Color
Customerized
Motor
5KW AC Motor
Controller
Programmable Controller
Warranty
12 Months
Use
Electric Passenger Vehicle

Product description

Technic Parameters

PERFORMANCE
Passenger Capacity
4 Seats
Recharge Time
7-8 hours
Max Speed
25km/H
Max. travelling range
80-100km
Climbing Capacity
25%
Brake Range
≤4m
Wheelbase
1680mm
Front track
935mm
Rear track
990mm
Size
3100x1350x1950
Curb weight
370kg
Rated weight
525kg
ELECTRICAL PARAMETERS
Electronic control
AC intelligent controller
Charger
On Board Charger, Full Automic Effciency Pulse Charger
Motor
Three-phase asynchronous AC traction motor (power 4kw)
Battery
Lithium battery 48V180AH (lead-acid 48V150AH)

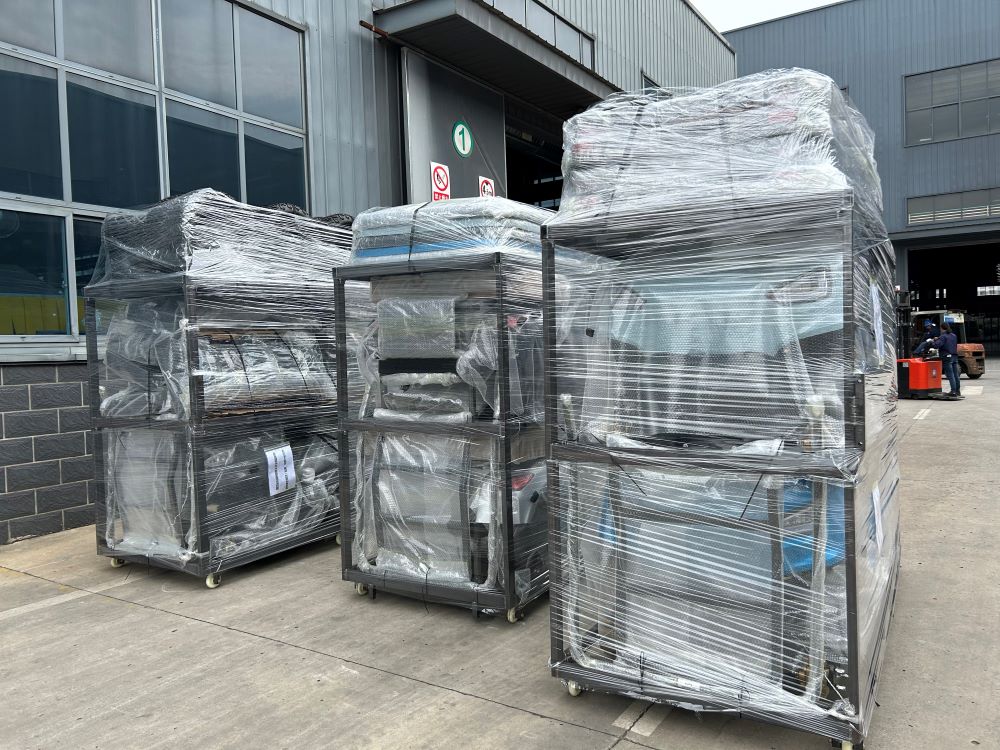

Packing & Delivery

OEM services
