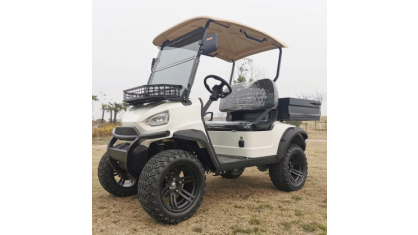

2 seatelectric golf cart with cargo box

HX-DL-A2-H
Characteristic

Lead-acid batteries / Lithium batteries (optional)

Special-duty utility cars

Import main parts

Cargo box

Technic Parameters

Battery Lead Acid Battery ( Or Lithium Battery Optional)
Motor Power 4/5/7KW AC Motor
Controller AC Intelligent Controller
Passenger   Capacity 2
Range (Loaded) Based On Flat Road At A Speed Of 20km/H (Km) >80--100   Depends On Battery Setup
Max. Speed 25 About Depends On   Motor And Rear Axle Setup
Minimum   Turning Radius (M) 3
Max. Climbing Ability 25%
Max. Loading   Weight 360kgs
Overall   Dimensions (Mm) 2750x1340x1950
Body And Frame
Frame Aluminum Alloy Beam
Body Injection Molding Of Automotive Engineering Materials
Roof Ection Molding Of Automotive Engineering Materials
Windshield One-Piece   Organic Glass
Large Seats: Foam Premium Faux Leather Seat ,Formed Armrest, Plastic Seat Bottom
Floor Rubber
Dashboard In   Black Plastic High-Quality Plastic Dashboard
Beverage   Holders 2 Cups Drink   Holders
Electric System
Lighting   System And Horn 2 Headlights (With H/L Beam), Front LED Position Light, 2 LED Taillights, With Horn Reversing Buzzer
Charger Input   110V-240V~50Hz-60Hz, Output 36V/48V, 20A/25A
Steering   And Suspension
Steering   System Single-Stage   Rack And Pinion Steering System, Automatic Rocker Compensating Function
Brake System Front Disc Brake, Rear Drum Brake, Electronic Parking
Accelerator Stepless Speed Change
Suspension   System Independent Suspension, Cylinder Hydraulic Shock Absorber
Driving Mode Rear Axle Two   Stage Deceleration, Motor Direct Driving
Rear Axle Integrated
Wheel & Tyre 23×10-14
